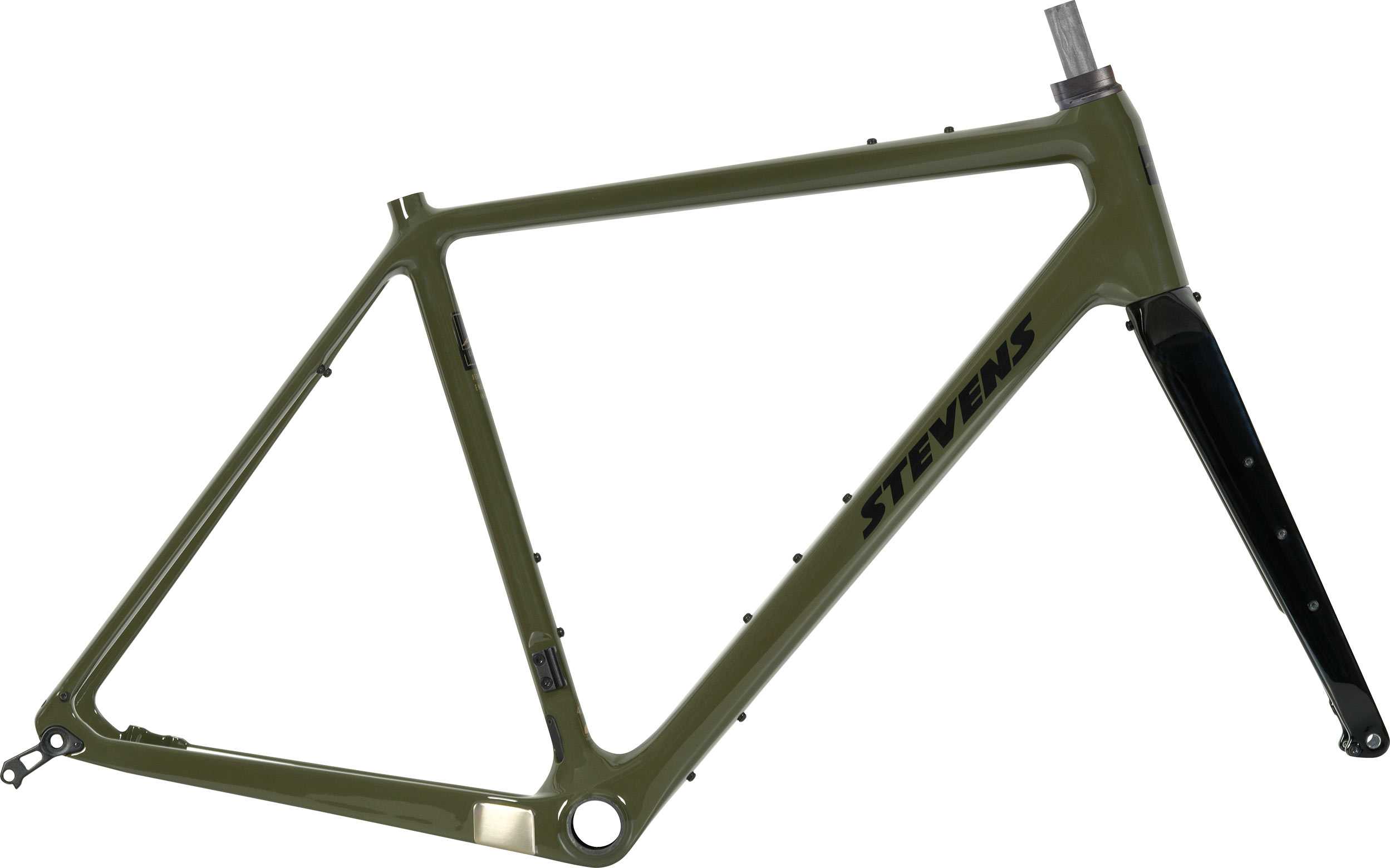

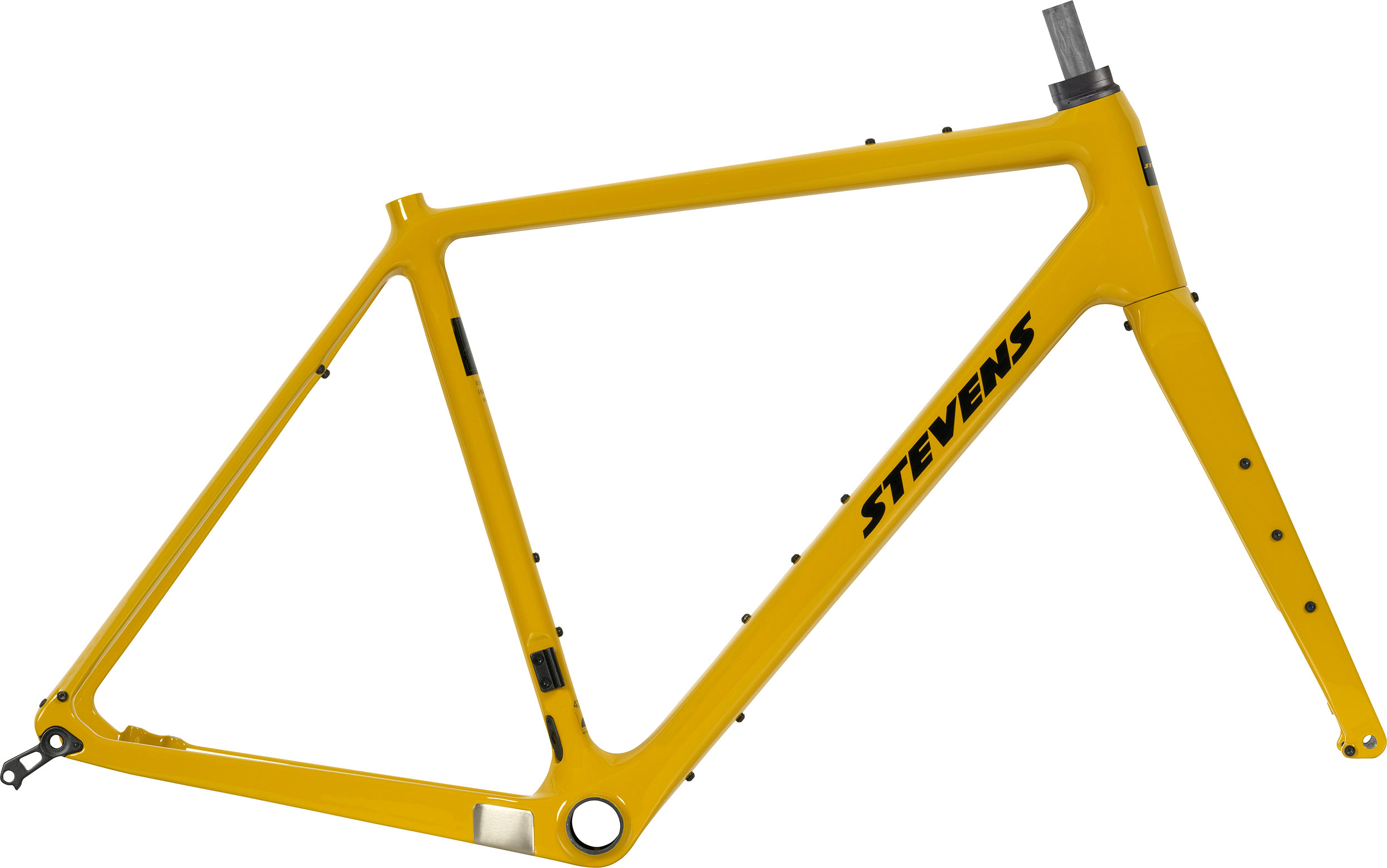

Camino Pro Framekit

Ramme	Carbon SL Fiber
Størrelser	48, 51, 54, 56, 58, 61 cm
Colors	Marigold Khaki

Priser

Stelkit: 2 039.00 €

Individual bike configuration Konfigurer

Made For Any Path. Designed By STEVENS

Whether it's a multi-day bike-packing tour or a quick ride off the beaten track - based on the geometry of our successful gravel aluminum frames, the STEVENS Camino Pro is ideal for anyone looking for a multifunctional bike with a super-light and comfortable carbon frame. It impresses with well thought-out details such as an integrated seatpost clamp and internal cable routing. Numerous mounting eyelets on the top and down tube, seat post tube and fork allow easy mounting of bike packing equipment.

Modern and comfortable carbon gravel frame with full carbon fork
With integrated cable routing
Numerous attachment points for bikepacking equipment on frame and fork
Up to 45 mm tyre clearance for plenty of comfort
Wide range of sizes: 48/51/54/56/58/61 cm

Galleri

Billederne kan afvige. Udstyr kan ændres.

Chassis

Ramme: Carbon SL Fiber

Forgaffel: STEVENS Full Carbon SL

Data

Till. totalvægt: 130 kg

Farve(r): Khaki | Marigold

Stelvægt: 1205 g

Gaffelvægt: 460 g

Størrelser: 48, 51, 54, 56, 58, 61 cm

Geometri

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

Online størrelsesrådgivning erstatter ikke rådgivning fra en specialforhandler. Den tjener som en indledende orientering og kan afvige fra personlige præferencer. En prøvetur giver den bedste sammenligning.

Stelhøjde (cm)		48	51	54	56	58	61	Målemetode
Radius hjul voran	N1	354,3	354,3	354,3	354,3	354,3	354,3	tyred
Radius hjul bag	N2	354,3	354,3	354,3	354,3	354,3	354,3	tyred
Spacerudstyr		8,8 + 35 + 210
		48	51	54	56	58	61

Order numbers

	Marigold	Khaki
48 cm	0042507102	0042507202
51 cm	0042507105	0042507205
54 cm	0042507108	0042507208
56 cm	0042507110	0042507210
58 cm	0042507112	0042507212
61 cm	0042507115	0042507215

Bike-Category 4

Cross and gravel bikes

This category describes STEVENS cross and gravel bikes. They have 28” - inch wheels with narrow tyres. The tyre width is 28 to max. 42 mm. STEVENS ALLROUND X Cross, STEVENS Gravel.

Instructions on intended use

The maximum permissible overall weight (comprising rider, luggage, possibly trailer load and bicycle) should not exceed 130 kg. Under certain circumstances the permissible maximum weight can be further limited by the component manufacturers’ recommendations for use or weight limits. You find more information in the instructions od on the website of the respective component manufacturers.
STEVENS cross and gravel bikes are designed for a trailer load of 40 kg without and 80 kg with trailer brake. On STEVENS gravel bikes made of carbon, however, the use of trailers is not permitted.
On STEVENS cross and gravel bikes made of carbon child seats are not permitted. On STEVENS cross and gravel bikes made of aluminium child seats are permitted. For more information see the chapter “Use of Child Seats” in your comprehensive STEVENS user manual.

STEVENS cross bikes are intended for hard-surface terrain, i.e. for tarred roads and bicycle lanes or gravel field tracks, where the wheels do not lose ground contact. In addition, they are well suited for well paved gravel paths and forest roads as well as off-road trails with a slight slope where a temporary loss of tyre contact with the ground due to small steps may occur. They are not suitable for off-road use (mountain bike use), namely for all mountain, enduro, downhill (DH), freeride, dual slalom, downhill/freeride parks, jumps, drops and in bike parks etc.

Due to their design and fittings, STEVENS cross bikes are not always suitable for being used on public roads. If you want to use them on public roads, these bikes must be fitted with the prescribed equipment. Observe the traffic rules when riding on public roads. For more information read the chapter “Legal Requirements for Riding on Public Roads” in your comprehensive STEVENS user manual on our website www.stevensbikes.de/manual.

Danger:

STEVENS bicycles of the category 4 are not suitable for off-road use, jumps, slides, stair riding, stoppies, wheelies, tricks etc.!
