E-Agnello 7.8.1

Peso	24.8 kg
Telaio	Aluminium 6061
Taglie	27,5" - 14" \| 29" - 16", 18", 20", 22", 24"
Color	Ash Grey

Prezzi

Prezzo consigliato pubblico: 3 799,00 €

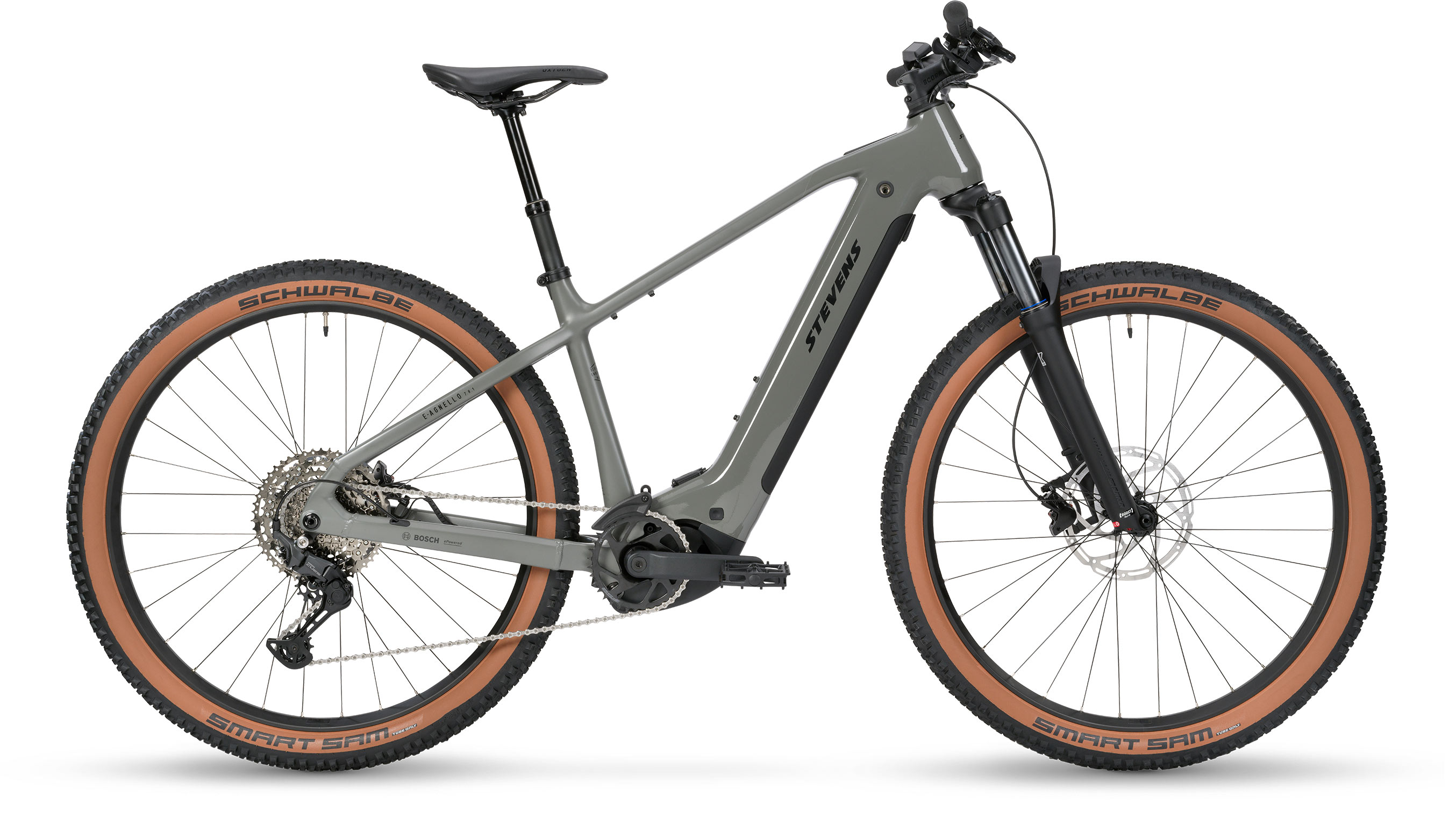

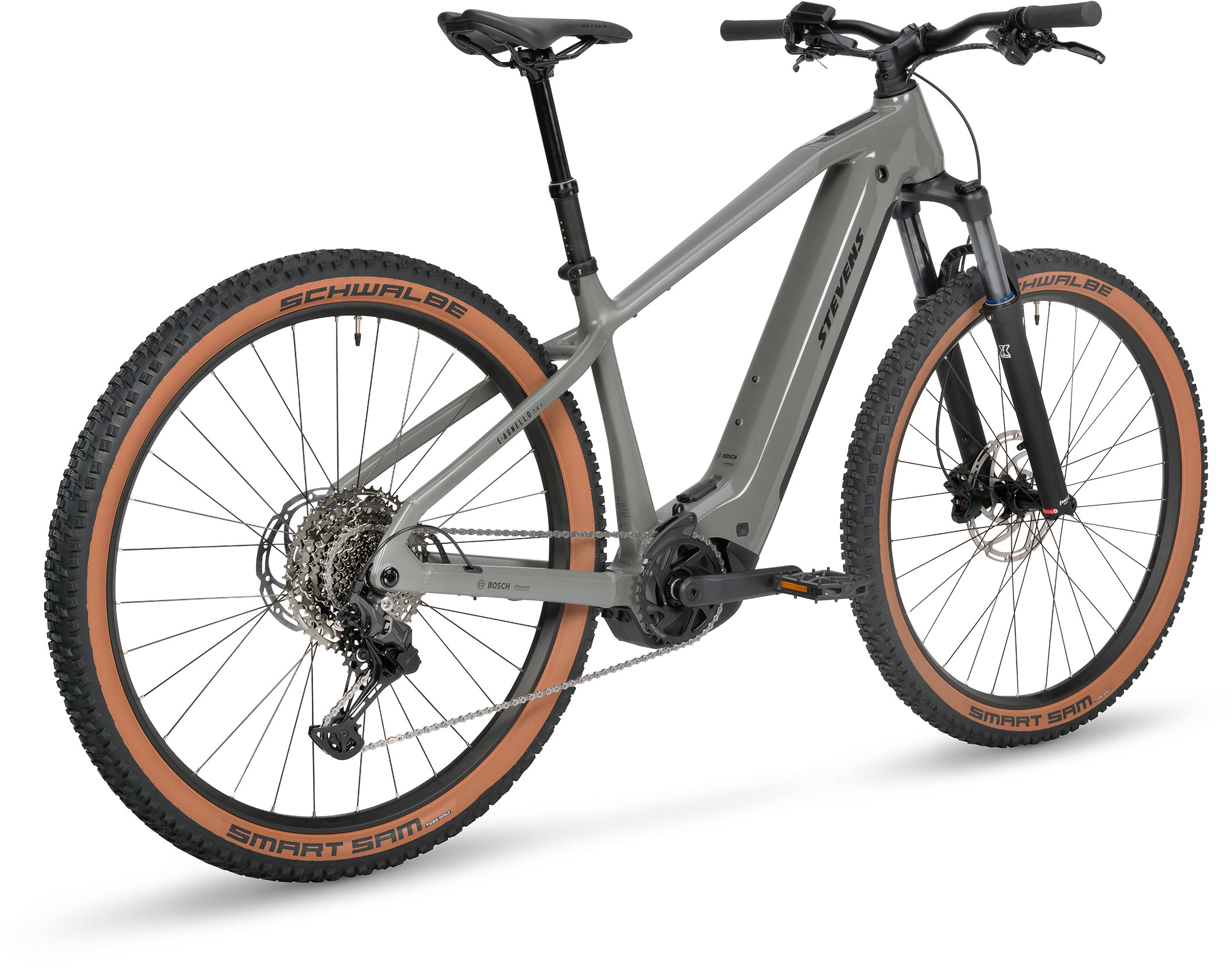

The hardtail with Bosch PX power and control

With its lightweight aluminium frame in elegant ash grey and sporty, comfortable trail geometry, the E-Agnello 7.8.1 is a high-quality e-hardtail. The powerful Bosch Performance Line PX drive and precise Shimano CUES 11 gear system take riding dynamics and agility to a new level – for ultimate uphill flow and maximum downhill fun. The finely tuned suspension fork and the proven Schwalbe Smart Sam tyre combination provide plenty of safety, even on rocky and technical trails. The agile, sporty riding experience is rounded off by the high-quality, powerful Tektro 4-piston hydraulic brakes.

Versatile e-hardtail in a huge range of sizes from 14 to 24 inches
Bosch Performance Line PX Drive Unit with large 800 Wh PowerTube battery
Reliable Shimano CUES U6000 1x11-speed drivetrain
Homogeneous 120 mm suspension fork for top trail performance
Coordinated 27.5‘ & 29’ wheel sizes

Illustration may differ. Specification subject to change.

Telaio

Telaio

Aluminium 6061

O.L.D.: 148 mm
Brake: postmount disc 7"
BB: Bosch
Cable routing: internal

Forcella Frontale

SR Suntour XCR36X-Boost 2CR

Travel: 120 mm
Air suspension
Tapered Steerer 1 1/8" - 1.5"
O.L.D.: 110 mm
Brake: postmount disc 7"

Serie Sterzo

Acros Blocklock Taper 1 1/8"-1.5"

Upper bearing cup: ZS56/28.6
Lower bearing cup: ZS66/40

Brake front

Tektro HD-M3520

Hydraulic disc brake
2 pistons

Brake rear

Tektro HD-M3520

Hydraulic disc brake
2 pistons

Brake disc front

Tektro TR203-45A

Rotor size: 203 mm
Center-Lock

Brake disc rear

Tektro TR180-45A

Rotor size: 180 mm
Center-Lock

Trasmissione

Pedivella

FSA CK-747/IS

BB type: Bosch / ISIS

Motor sprocket

FSA E-MTB

36 T
Chainline: 55 mm

Deragliatore r

Shimano CUES U6000 Shadow+

RD-U6000-GS
10/11-speed
Total capacity: 39 T

Catena

Shimano CN-LG500

LINKGLIDE

Cassetta

Shimano CS-LG400-11

11-speed
Combination: 11-13-15-17-20-23-26-30-36-43-50 T

Pedali: MTB Flatpedal Reflex

E-System

Motore

Bosch Performance Line PX

BDU347Y
The smart system
Continuous rated power: 250 W
Max. torque: 90 Nm
Breakaway at 25 km/h (15.5 mph)
No of notches: 4 drive modes with support levels 60-400 % plus walk assistance
Mileage: See BOSCH Range Assistant

Accumulatore

Bosch PowerTube 800

The smart system
Capacity: 800 Wh/22.2 Ah
Voltage: 36 V
Technology: Li-Ion

Caricatore: Bosch 4A charger

Set Ruote

Mozzo r

Formula FCL-548S

Axle: QR12x148 mm

Mozzo f

Formula FCL-811

Axle: QR15x110 mm

Cercione

Oxygen Disc 32

ETRTO: 27.5": 32 x 584 | 29": 32 x 622

Copertoni

Schwalbe Smart Sam Performance

Tire size: 27.5": 65-584 | 29": 65-622
Foldable
ADDIX Compound

Postazione di guida

Manubrio

Oxygen Scorpo

Width: 740 mm
Backsweep: 9°
Rise: 25 mm
Clamp: 31.8 mm

Attacco

Scorpo

Handlebar clamp: 31.8 mm
Angle: 5°

Sella: Oxygen Havoc

Reggisella

Scorpo DPR-E

Travel: 27.5": 100 mm | 29": 100 mm | 125 mm | 150 mm | 170 mm
Remote Lockout
Length: 27.5": 360 mm | 29": 360 mm | 410 mm | 460 mm | 500 mm
Diameter: 30.9 mm
Insertion depth: 100 mm

Shift lever right

Shimano CUES U6000

SL-U6000-11R
11-speed

Leva del freno

Tektro HD-M535

2 finger

HMI display

Bosch Purion 200

The smart system

Bell: STEVENS D85 bell

Dati

Peso: 24.8 kg

Carico: 140 kg

Colore(i): Ash Grey

Taglie: 27,5" - 14" | 29" - 16", 18", 20", 22", 24"

Geometria

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

I consigli sulle taglie online non sostituiscono la consulenza di un rivenditore specializzato. Serve come orientamento iniziale e può differire dalle preferenze personali. Un giro di prova offre il miglior confronto.

Altezza Telaio (")		14	16	18	20	22	24	Metodo di misura
Lunghezza tubo sella	A1	630	675,5	679,6	649,1	709,4	732,4	nominale
Lunghezza tubo sella	A2	370	400	440	490	545	590	dal mov.centrale a fine tubo sella
Lunghezza tubo sella	A3	340	364,7	367	384	412,2	450	dal mov.centrale al tubo orizzontale
Lunghezza top tube	B	592,9	598,8	611	629	648,1	669
Top tube orizzontale	C	592,2	600	616,5	637,4	663,8	688,9	dal centro tubo sterzo al centro tubo sella
Angolo seriesterzo (°)	D	67,5	68	68,5	68,5	68,5	69
Inclinazione tubo sella (°)	E	75	75	74,5	74,5	74,5	74
Ruota ferma	F	.....	.....	.....	1200	.....	.....
Lunghezza batti catena	G	455	470	470	470	470	470
Lunghezza seriesterzo	H	130	125	125	140	155	175
Inclinazione movimento centrale	I	57	70	70	70	70	70	distanza dal mov.centrale al livello centro mozzi
Altezza movimento centrale	K	304,8	305	305	305	305	305	distanza dal terreno
Inclinazione forcella	L	44	44	44	44	44	44
Inclinazione	M	277	300	301	297,8	286,6	271,9	distanza del livello tubo orizzontale (fronte - retro)
Raggio ruota davanti	N1	360	379,5	379,5	379,5	379,5	379,5	tyred
Raggio ruota posteriore	N2	360	379,5	379,5	379,5	379,5	379,5	tyred
Altezza regolabile	O	442,2	778	778,8	791,9	813,5	843,5	dal top del tubo orizzontale al terreno**
Top tube height	O1	747	473	305,7	486,9	508,5	538,5	standover height minus bottom bracket height
Altezza gambo forcella	P	518	518	518	518	518	518	incl. Base tappo dello sterzo
Distanziale per movimento centrale - ruota anteriore	Q	709,8	707,5	716,2	738,5	759,9	780,6
Reach	R	425	425	435	452	468	487	Dall'albero delle pedivelle al centro serie sterzo, in orizzontale
Stack	S	624,1	652,5	654,9	668,9	682,8	704	Dall'albero delle pedivelle al centro serie sterzo, in verticale
Stack/Reach (1:x)		1,47	1,54	1,51	1,48	1,46	1,47	Rapporto catasta da raggiungere
Diametro reggisella		30,9	30,9	30,9	30,9	30,9	30,9
Lunghezza attacco		60	60	70	80	80	80	centro-centro
Angolo attacco (°)		5	5	5	5	5	5
Diamentro manubrio		31,8	31,8	31,8	31,8	31,8	31,8
Set Spaziatori		9,5 + 6*5 + 5
Larghezza manubrio		740	740	740	740	740	740
Lunghezza pedivella		165	165	165	165	165	165
		14	16	18	20	22	24

Tutti i valori di geometria variabile si riferiscono alla posizione di guida regolare (con ciclista a bordo e forcella leggermente compressa).

** measured 100 mm ahead of bottom bracket

Bike-Category 5 E

E-cross-country, E-marathon and E-touring mountain bikes

This category describes STEVENS E-cross-country, E-marathon and E-touring mountain bikes. STEVENS hardtail E-mountain bikes and full suspension STEVENS E-MTB with short suspension travel are typical for this category.

Instructions on intended use

The maximum permissible overall weight (comprising rider, luggage, possibly trailer load end electric bicycle) should not exceed 140 kg. Under certain circumstances the permissible maximum weight can be further limited by the component manufacturers’ recommendations for use.
On full suspension STEVENS E-mountain bikes made of aluminium the use of trailer is permitted. On full suspension STEVENS E-mountain bikes made of carbon, however, the use of trailers is not permitted.
On full suspension STEVENS E-mountain bikes (made of aluminium and carbon) as well as on STEVENS hardtail E-mountain bikes made of carbon child seats are not permitted. On STEVENS hardtail E-mountain bikes made of aluminium child seats are permitted. For more information see the chapter “Use of Child Seats” in your comprehensive STEVENS user manual.

STEVENS E-cross-country, E-marathon and E-touring mountain bikes are suitable for off-road use, but not for blocked terrain, tricks, stair riding etc. as well as training and competitive use in the categories freeride, dirt, downhill. STEVENS bikes of this category can be used on surfaces permitted for bikes of the categories 1 and 3 and are in addition suitable for rough and unpaved terrains. Sporadic jumps are also included in the field of use of these STEVENS bikes. But particularly inexperienced riders doing jumps may land inappropriately, thus increasing the acting forces significantly which may result in damage and injuries. We recommend that you train your skills in a riding technique course. If necessary, ask your STEVENS dealer to inspect your STEVENS bike at shorter intervals than according to the service and maintenance schedule.

Due to their design and fittings, STEVENS E-mountain bikes of the category 5 E are not always suitable for being used on public roads. If you want to use them on public roads, these bikes must be fitted with the prescribed equipment. Observe the traffic rules when riding on public roads. For more information read the chapter “Legal Requirements for Riding on Public Roads” in your comprehensive STEVENS user manual on our website www.stevensbikes.de/manual.

Danger:

STEVENS bikes of the category 5 E are not suitable for use on blocked terrain, for high and long jumps, slides, stair riding, stoppies, wheelies, tricks etc.!
