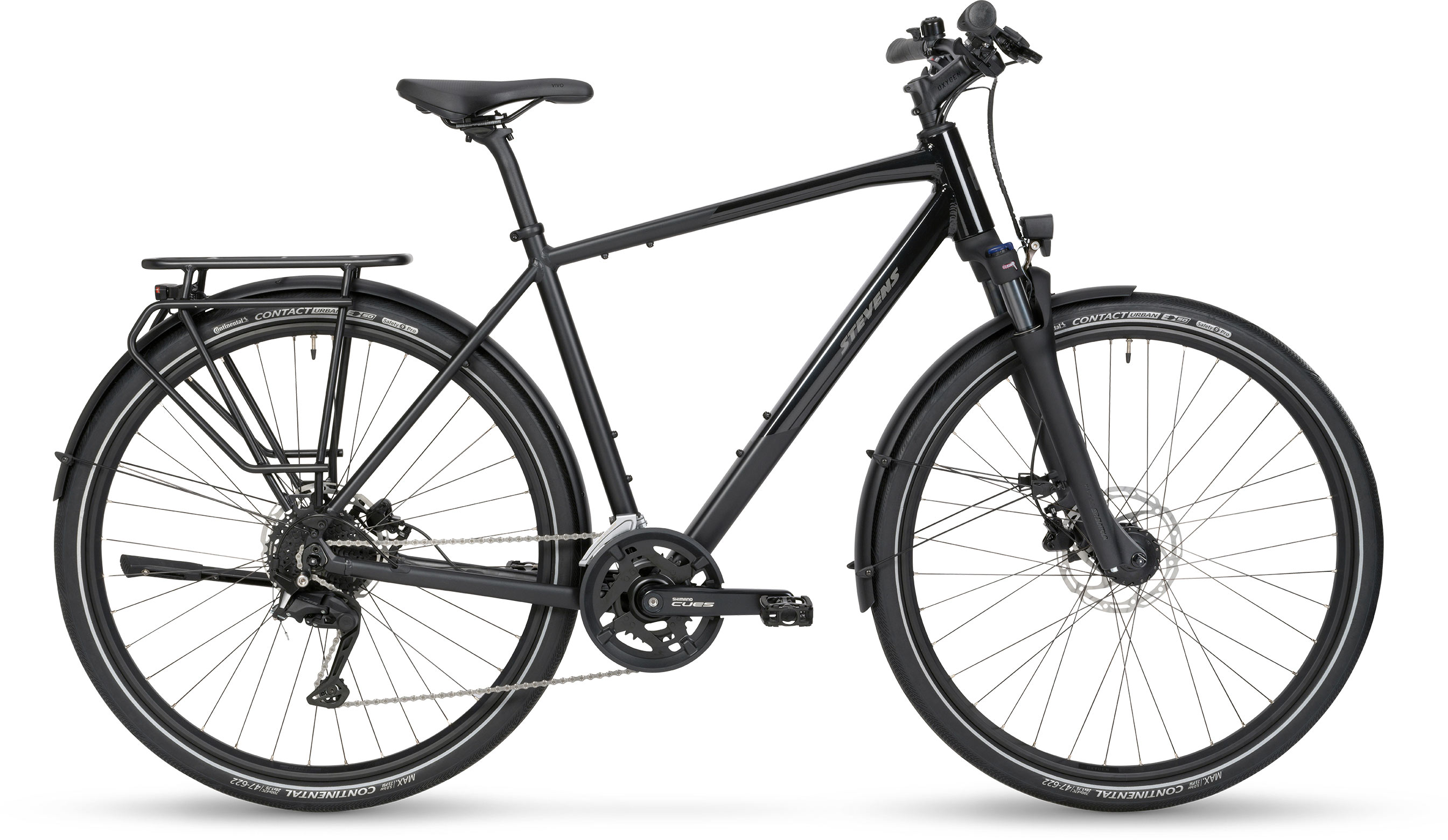

Aviolo 6.1

Weight 17.6 kg
Frame Aluminium 6061
Sizes HT: XS, S, M, L, XL, XXL
Color Stealth Black

Pricing

recomm. retail price
1 199.00 €

True freedom begins on two wheels.

The Aviolo 6.1 – ready for any adventure. Whether it's your daily commute through the city or an extended tour into the unknown, the Aviolo 6.1 is your reliable companion in every situation. The Stevens classic impresses with its elegant, matt deep black finish and subtle, glossy accents – understated style. Its lightweight aluminium frame, comfortable geometry and pleasantly balanced seating position make every ride a pleasure. The steel suspension fork with 63 mm of travel absorbs bumps with ease and provides noticeably more comfort – even on longer distances. Thanks to the Shimano CUES 4000 2x9 gear system, you'll always find the right gear – whether on smooth asphalt or rough gravel. The Conti Contact Urban tyres roll easily, offer excellent puncture protection and thus contribute to an all-round harmonious riding experience.

  • High-quality tour bike with a wide range of sizes and in three frame shapes
  • Robust Shimano CUES U4000 2x9-speed drivetrain
  • Powerful LED headlight
  • 47 mm wide tyres for plenty of comfort
  • Steel suspension fork with 63 mm travel

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Aluminium 6061
  • O.L.D.: 135 mm
  • Brake: postmount disc 6"
  • BB: BSA 68 mm
  • Cable routing: internal
Fork
SR Suntour NRX32-SP
  • Travel: 63 mm
  • Coil spring
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 100 mm
  • Brake: postmount disc 6"
Headset
FSA No.80 56 CR II Taper 1 1/8"-1,5"
  • Upper bearing cup: ZS52/28.6
  • Lower bearing cup: ZS52/40
Brake front
Tektro HD-T280
  • Hydraulic disc brake
  • 2 pistons
Brake rear
Tektro HD-T280
  • Hydraulic disc brake
  • 2 pistons
Brake disc
Tektro TR180-35
  • Rotor size: 180 mm
  • Center Lock

Drivetrain

Crankset
Shimano CUES U4000
  • Shimano FC-U4010-2
  • 46-30 T
  • 2-Piece
  • Chainguard
Derailleur front
Shimano CUES U4000
  • FD-U4010-L
  • 2-speed
Derailleur rear
Shimano CUES U4000 Shadow
  • RD-U4020-SGS
  • 9-speed
  • Total capacity: 41 T
Chain
Shimano CN-LG500
  • LINKGLIDE
Cassette
Shimano CS-LG300-9
  • 9-speed
  • Combination: 11-13-15-17-20-23-26-30-36 T
Pedals
ATB Alu Reflex

Wheelset

Hubs rear
Formula CL-52
  • Axle: QR5x135 mm
Hubs front
Shimano DH-3D37
  • Hub dynamo
  • Axle: QR9x100 mm threaded
Rims
Oxygen Taurus 26
  • ETRTO: 26 x 622
Tires
Continental Contact Urban
  • Tire size: 47-622
  • Safety Pro
  • PureGrip Compound
  • Reflective stripes

Cockpit

Handlebar
Scorpo Rise
  • Width: 700 mm
  • Backsweep: 9°
  • Rise: 25 mm
  • Clamp: 31.8 mm
Stem
Oxygen
  • Handlebar clamp: 31.8 mm
  • Angle: 17°
Saddle
Selle Royal Vivo Ergo
Seatpost
Scorpo
  • Length: 350 mm
  • Diameter: 27.2 mm
  • Insertion depth: min. 100 mm
  • Offset: 17 mm
Shift lever left
Shimano CUES U4000
  • SL-U4000-L
  • 2-speed
Shift lever right
Shimano CUES U4000
  • SL-U4010-9R
  • 9-speed
Brake lever
Tektro HD-T280
  • 3 finger
Headlight
AXA Dynamo 45
  • Illuminance: 45 lux
Taillight
AXA Juno
  • Stationary taillight
Carrier
Racktime STV RC 11
  • System: SNAP IT 2.0
Mudguards
SKS mudguards
Kickstand
Pletscher Comp kickstand
  • Kickstand mount: KSA 40
Bell
STEVENS D85 bell

Data

Weight
17.6 kg
Laden weight
140 kg
Color(s)
Stealth Black
Sizes
HT: XS, S, M, L, XL, XXL


Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height   XS S M L XL XXL Measuring mode
Seattube length A1 615 635 654 679 701 721 nominal
Seattube length A2 450 490 530 560 600 640 bottom bracket to top of seattube
Seattube length A3 416 455 494 524 564 603 bottom bracket to top of top tube
Top tube length B 541 555 570 580 595 613
Top tube horizontal C 565 580 595 605 620 635 center headtube to center seatpost/seattube
Headtube angle (°) D 69,5 69,5 69,5 70,5 71 71
Seattube angle (°) E 72,5 72,5 72,5 72,5 72,5 72,5
Wheelbase F 1080 1096 1112 1111 1121 1137
Chainstay length G 460 460 460 460 460 460
Headtube length H 105 125 145 165 185 205
Bottom bracket drop I 65 65 65 65 65 65 distance of bottom bracket to hub level
Bottom bracket height K 298 298 298 298 298 298 distance to ground
Fork rake L 46 46 46 46 46 46
Slope M 185 166 148 142 126 107 top tube level distance front to rear
Wheel radius front N1 363,5 363,5 363,5 363,5 363,5 363,5 tyred
Wheel radius rear N2 363,5 363,5 363,5 363,5 363,5 363,5 tyred
Standover height O 775 805 834 861 892 921 top of top tube to ground**
Top tube height O1 477 507 536 563 594 623 standover height minus bottom bracket height
Fork build height P 468 468 468 468 468 468 incl. lower headset cups
Front wheel - bottom bracket Q 628 644 660 659 669 684
Reach R 380 389 398 401 409 418 center bottom bracket to center headtube, horizontal
Stack S 587 605 624 647 668 687 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,54 1,56 1,57 1,61 1,63 1,64 ratio stack to reach
Seatpost diameter   27,2 27,2 27,2 27,2 27,2 27,2
Stem length   90 90 90 90 110 110 center-center
Stem angle (°)   17 17 17 17 17 17
Handlebar diameter   31,8 31,8 31,8 31,8 31,8 31,8
Assembled spacers   12,4 + 2*5 + 2*10
Handlebar width   700 700 700 700 700 700
Cranklength   170 170 175 175 175 175
    XS S M L XL XXL

Wszystkie wartości zmiennej geometrii odnoszą się do standardowej pozycji jazdy (z rowerzystą na pokładzie i lekko ściśniętym widelcem amortyzowanym).

** measured 100 mm ahead of bottom bracket
