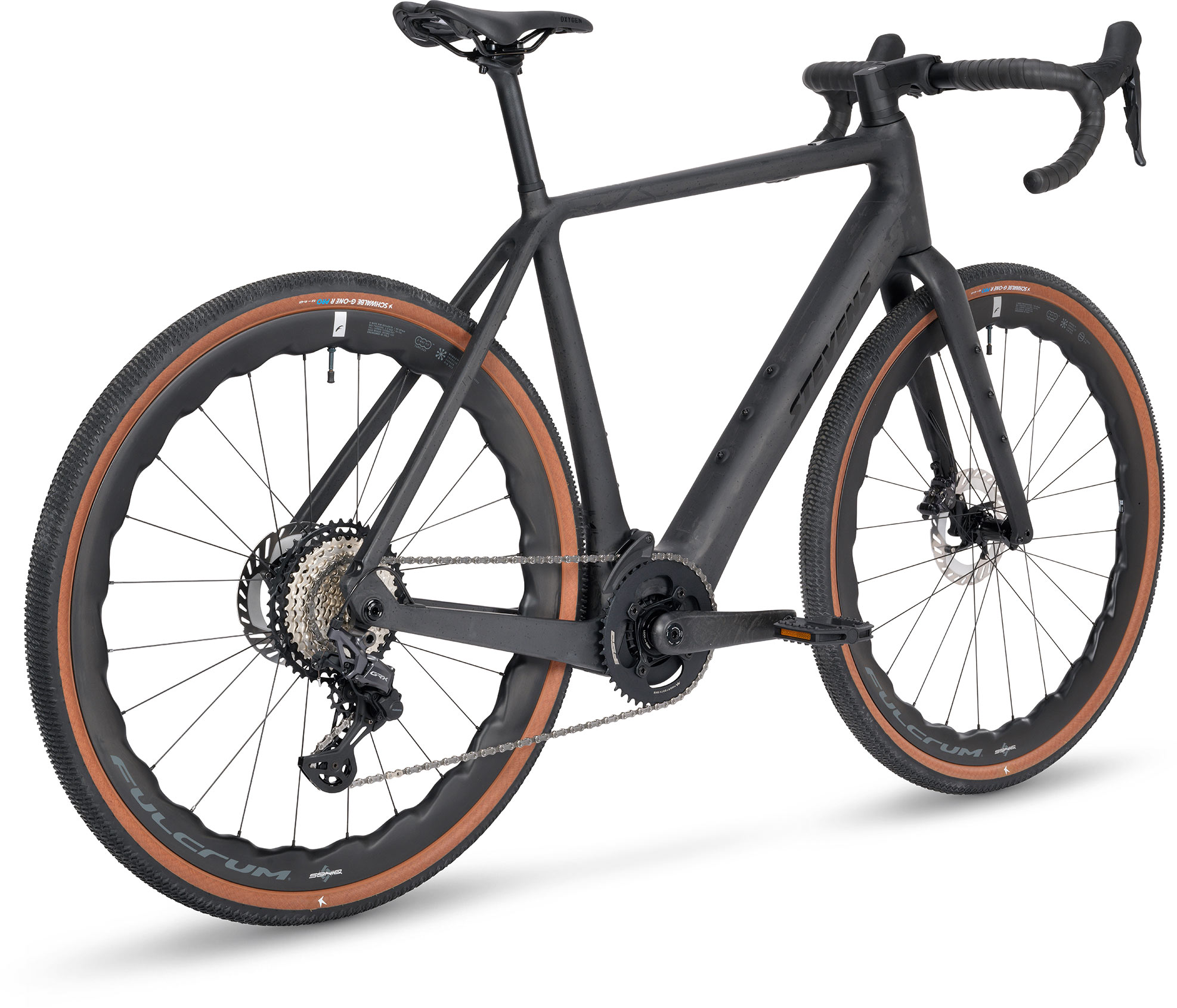

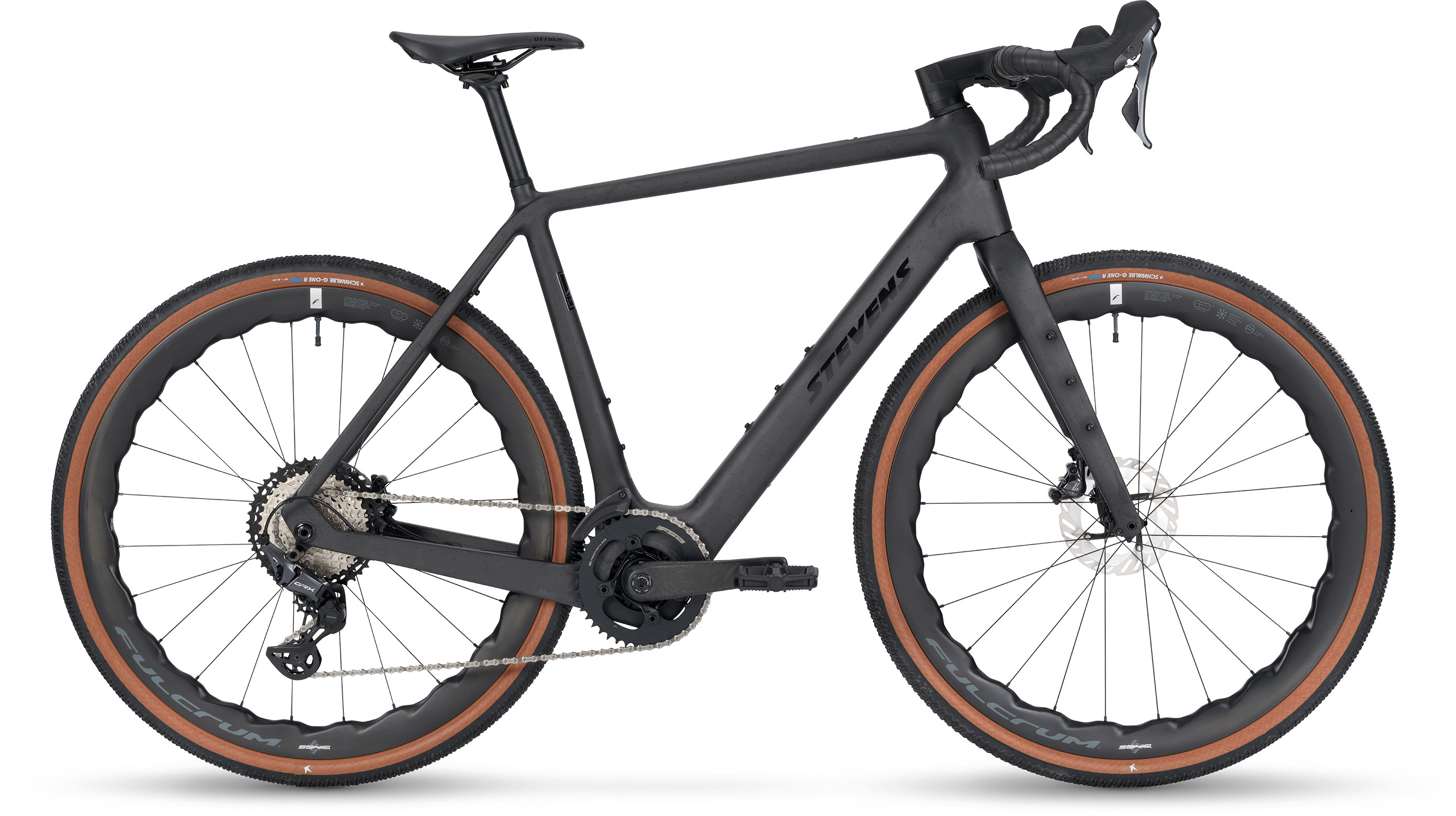

E-Getaway 9.4.3

Weight 13.2 kg
Frame Carbon SL Fiber
Sizes 50, 53, 56, 59 cm
Color Black Onyx

Pricing

recomm. retail price
5 999.00 €

Ride further. Ride faster.

Based on the award-winning geometry of the Camino gravel bike family, the E-Getaway offers a sporty yet comfortable riding position for perfect bike control and plenty of comfort, even on long tours. The low total weight of just over 13.2 kilograms is made possible by an optimised frame design. At the same time, the high-tech carbon frame offers high rigidity even when heavily loaded with bikepacking accessories. The STEVENS E-Getaway benefits uniquely from the latest generation of Light Assist e-drives. The TQ-HPR60 drive unit, discreetly integrated into the frame, provides natural assistance to your own pedalling power at all times, especially on inclines and when carrying heavier loads. The 360 Wh battery, which is permanently installed in the slim down tube, combines with the efficient drive unit to provide a long range, which can be further increased with the optional 160 Wh range extender. The other features are also impressive: the Shimano GRX 820-based drivetrain offers a wide gear range for mountains and flat terrain. High-quality Fulcrum Soniq wheels with 45 mm wide Schwalbe G-One R Pro tyres ensure plenty of robustness, propulsion and comfort on challenging gravel rides.

  • High-quality E-Gravel bike with inconspicuously integrated electric assistance
  • Lightweight carbon frame with optimised rigidity. Standard mounting points allow the attachment of optional everyday accessories such as a kickstand, mudguards or pannier rack
  • TQ-HPR60 Lite-Assist drive unit with up tp 60 Nm of torque and frame-integrated 360 Wh battery pack
  • Unobtrusive, redesigned colour display in the top tube for a clean cockpit design
  • Wide bandwidth Shimano GRX 822/820 1x12-speed groupset and high-quality hydraulic disc brakes

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Carbon SL Fiber
  • O.L.D.: 142 mm
  • Brake: flatmount disc
  • Tretlager: TQ
  • Zugverlegung: intern
  • Fender + rack mounts
Fork
STEVENS Full Carbon SL
  • Tapered Steerer 1 1/8" - 1 1/2"
  • O.L.D.: 100 mm
  • Brake: flatmount disc
Headset
Acros Viper Taper 1 1/8"-1,5"
  • Upper bearing cup: ZS52/28.6
  • Lower bearing cup: ZS52/40
Brake front
Shimano GRX 820
  • BR-RX820
  • Hydraulic disc brake
  • Flatmount standard
Brake rear
Shimano GRX 820
  • BR-RX820
  • Hydraulic disc brake
  • Flatmount standard
Brake disc
Shimnao RT-CL800
  • Rotor size: 160 mm
  • Center-Lock
  • Ice Technology FREEZA

Drivetrain

Crankset
FSA CK-702/IS
  • Hollow Carbon
  • BB type: ISIS
Motor sprocket
FSA TQ
  • 44 T
  • Chainline: 50 mm
Derailleur rear
Shimano GRX 820 Shadow+
  • RD-RX822-GS
  • 12-speed
  • Total capacity: 35 T
Chain
Shimano CN-M8100
Cassette
Shimano Deore XT
  • CS-M8100-12
  • 12-speed
  • Combination: 10-12-14-16-18-21-24-28-32-36-40-45 T
Pedals
ATB Pedal Reflex

E-System

Engine
TQ HPR60
  • Continuous rated power: 300 W
  • Max. torque: 60 Nm
  • Breakaway at 25 km/h (15.5 mph)
Battery
TQ HPR-BAT01
  • Kapazität: 360 Wh/6.8 Ah
  • Voltage: 50.4 V
  • Technology: Li-Ion
Charger
TQ 4A charger

Wheelset

System wheelset
Fulcrum Soniq Carbon
  • Axle: QR12x100 mm/12x142 mm
  • Optimized weight limitation: 130 kg
Tires
Schwalbe G-One R Pro Evolution
  • Tire size: 45-622
  • Foldable
  • V-Guard
  • ADDIX Race
  • Tubeless Easy

Cockpit

Handlebar
Scorpo Aero Gravel
  • Drop: 122 mm
  • Reach: 70 mm
  • Clamp: 31.8 mm
Stem
Oxygen E-Scorpo
  • Handlebar clamp: 31.8 mm
  • Angle: -7°
Saddle
Oxygen Triton 2.0
Seatpost
Scorpo
  • Length: 350 mm
  • Diameter: 27.2 mm
  • Insertion depth: min. 100 mm
Shift/brake lever left
Shimano GRX 820 STI
  • ST-RX820-L
  • 1-speed
Shift/brake lever right
Shimano GRX 820 STI
  • ST-RX820-R
  • 11-speed
Display
TQ HPR Colordisplay
Bell
STEVENS D85 bell

Data

Weight
13.2 kg
Laden weight
130 kg
Color(s)
Black Onyx
Sizes
50, 53, 56, 59 cm

Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height (cm)   50 53 56 59 Measuring mode
Seattube length A1 589,7 614,3 634,6 656,3 nominal
Seattube length A2 480 510 540 570 bottom bracket to top of seattube
Seattube length A3 465 494,3 525 556 bottom bracket to top of top tube
Top tube length B 533 555 571 587
Top tube horizontal C 551 576 591 606 center headtube to center seatpost/seattube
Headtube angle (°) D 71 71,5 71,5 72
Seattube angle (°) E 74 73 73 73
Wheelbase F 1041 1051,4 1066,8 1077
Chainstay length G 440 440 440 440
Headtube length H 130 150 170 190
Bottom bracket drop I 70 70 70 70 distance of bottom bracket to hub level
Bottom bracket height K 289 289 289 289 distance to ground
Fork rake L 45 45 45 45
Slope M 114 109 99,4 89,3 top tube level distance front to rear
Standover height O 756 809 834 859 top of top tube to ground*
Top tube height O1 497 520 545 570 standover height minus bottom bracket height
Fork build height P 410 410 410 410 incl. lower headset cups
Front wheel - bottom bracket Q 611,1 621 636,4 646,4
Reach R 388,4 396,3 405,4 414 center bottom bracket to center headtube, horizontal
Stack S 567 587,5 607 627,6 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,46 1,48 1,5 1,52 ratio stack to reach
Seatpost diameter   27,2 27,2 27,2 27,2
Stem length   80 80 90 100 center-center
Stem angle (°)   -7 -7 -7 -7
Handlebar diameter   31,8 31,8 31,8 31,8
Assembled spacers   5 + 2*5 + 2*10
Handlebar width   420 420 440 440
Cranklength   170 170 175 175
    50 53 56 59

* measured 100 mm ahead of bottom bracket
