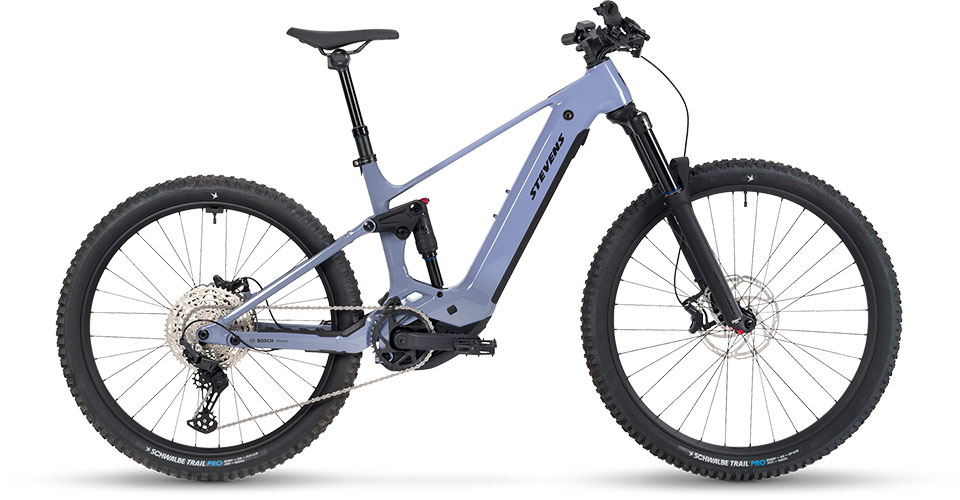

E-Inception AM 6.8.1

Weight 26.6 kg
Frame Aluminium 6061
Sizes 29"/27.5" - R1, R2, R3, R4, R5
Colors Slate Sky
Nightstone

Pricing

recomm. retail price
39.599 kr.

Over the hills and far away on aluminium

E-All-Mountain can be this straightforward. The STEVENS E-Inception AM 6.8.1 combines a functional suspension system, tried-and-tested yet state-of-the-art gear and brake components, and the smart power of the most popular drive unit on the market to create a highly sporty all-round package. Its newly developed aluminium frame is based on the design of the carbon version and adopts its progressive universal geometry – for agile, confidently controllable handling on any trail. The touring-friendly, comfortable riding position transforms even long adventures into relaxed moments of enjoyment. Hidden away in the down tube: the Bosch PowerTube with 800 Wh, which is of course removable on all frame sizes. And for those who want even more range, the optional Bosch PowerMore Range Extender is available – also on every frame size. This turns every ride into an almost endless experience. The mullet wheel combination, with a 29‘ front wheel and a 27.5’ rear wheel, ensures the perfect balance between climbing performance and downhill control. Another highlight for both everyday use and trail riding: the standard lighting system with a bright LED headlight and a highly visible rear light.

  • High-quality equipped E-All-Mountain bike with a newly developed aluminum frame
  • Smart Bosch Performance Line CX drive unit with powerful 120 Nm torque
  • Removable 800 Wh battery across all frame sizes
  • Shimano Deore M6200 12-speed drivetrain
  • Bright LED front light and rear light included as standard

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Aluminium 6061
  • O.L.D.: 148 mm
  • Brake: postmount disc 7"
  • BB: Bosch
  • Cable routing: internal
Fork
SR Suntour AION36X EQ 2CR
  • Travel: 150 mm
  • Air suspension
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 110 mm
  • Brake: postmount disc 7"
Headset
Acros Blocklock Taper 1 1/8"-1.5"
  • Upper bearing cup: ZS56/28.6
  • Lower bearing cup: ZS66/40
Shock absorber
SR Suntour EDGE EVO R-LV
  • Travel: 150 mm
  • Air suspension
  • Length: 205 mm
  • Shock travel: 60 mm
  • Mounting width: Trunnion Mount/25.0x8 mm
Brake front
Tektro HD-M535
  • Hydraulic disc brake
  • 4 pistons
Brake rear
Tektro HD-M535
  • Hydraulic disc brake
  • 4 pistons
Brake disc
Tektro TR203-45A
  • Rotor size: 203 mm
  • Center-Lock

Drivetrain

Crankset
FSA CK-747/IS
  • BB type: Bosch / ISIS
Motor sprocket
FSA E-MTB
  • 36 T
  • Chainline: 52 mm
Derailleur rear
Shimano Deore Shadow+
  • RD-M6200
  • 12-speed
  • Total capacity: 41 T
Chain
Shimano CN-M6100
Cassette
Shimano CS-M6200
  • 12-speed
  • Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
  • Micro Spline
Pedals
MTB Flatpedal Reflex

E-System

Engine
Bosch Performance Line CX
  • BDU384Y
  • The smart system
  • Continuous rated power: 250 W
  • Max. torque: 120 Nm
  • Breakaway at 25 km/h (15.5 mph)
  • No of notches: 4 drive modes with support levels 60-600 % plus walk assistance (600 % available up to 15 km/h, then 400%)
  • Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 800
  • The smart system
  • Capacity: 800 Wh/22.2 Ah
  • Voltage: 36 V
  • Technology: Li-Ion
Charger
Bosch 4A charger

Wheelset

Hubs rear
Formula FCL-548S
  • Axle: TA12x148 mm
Hubs front
Formula FCL-811
  • Axle: TA15x110 mm
Rims
Oxygen Disc 32
  • ETRTO: 32 x 622
Tire front
Schwalbe Albert Trail Pro
  • Tire size: 63-622
  • Foldable
  • Trail Pro
  • Radial Carcass
  • Tubeless Ready
Tire rear
Schwalbe Romy Trail Pro
  • Tire size: 63-584
  • Foldable
  • Trail Pro
  • Radial Carcass
  • Tubeless Ready

Cockpit

Handlebar
Scorpo
  • Width: 780 mm
  • Backsweep: 9°
  • Rise: 25.4 mm
  • Clamp: 35 mm
Stem
Scorpo
  • Handlebar clamp: 35 mm
  • Angle: 5°
Saddle
Selle Royal SRX+
Seatpost
Gabriel SuperDropper
  • Supernova TL 3 Mini rearlight
  • Travel: 125 mm | 150 mm | 170 mm
  • Remote Lockout
  • Length: 435 mm | 492 mm | 550 mm
  • Diameter: 34.9 mm
  • Insertion depth: 100 mm | 110 mm
Shift lever right
Shimano SL-M6200
  • 12-speed
Brake lever
Tektro HD-M535
  • 2 finger
Display
Bosch Purion 200
  • The smart system
Headlight
Litemove SC 160
  • Illuminance: 160 lux
Bell
STEVENS D85 bell

Data

Weight
26.6 kg
Laden weight
125 kg
Color(s)
Slate Sky | Nightstone
Sizes
29"/27.5" - R1, R2, R3, R4, R5

Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height   R1 R2 R3 R4 R5 Measuring mode
Seattube length A1 642,1 642,1 651,4 660,6 674,5 nominal
Seattube length A2 385 420 435 455 475 bottom bracket to top of seattube
Seattube length A3 315,7 319,5 327,2 336,4 339,6 bottom bracket to top of top tube
Top tube length B 587,7 559,2 618,8 637 665,8
Top tube horizontal C 575,5 590,5 612,8 635,1 663,6 center headtube to center seatpost/seattube
Headtube angle (°) D 64 64 64 64 64
Seattube angle (°) E 75,5 75,5 75,5 75,5 75,5
Wheelbase F 1228,2 1243,2 1267,6 1291,9 1323,5
Chainstay length G 447 447 447 447 447
Headtube length H 110 110 120 130 145
Bottom bracket drop I 15,1 15,1 15,1 15,1 15,1 distance of bottom bracket to hub level
Bottom bracket height K 339,2 339,2 339,2 339,2 339,2 distance to ground
Fork rake L 44 44 44 44 44
Slope M 295,1 283,3 282 282,8 294,8 top tube level distance front to rear
Standover height O 747,2 747,1 752,2 762,2 760,9 top of top tube to ground*
Top tube height O1 408 407,9 413 423 421,7 standover height minus bottom bracket height
Fork build height P 578,6 578,6 578,6 578,6 578,6 incl. lower headset cups
Front wheel - bottom bracket Q 781,9 796,9 821,3 845,6 877,2
Reach R 440 455 475 495 520 center bottom bracket to center headtube, horizontal
Stack S 627,6 627,6 636,6 645,6 659,1 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,43 1,38 1,34 1,3 1,27 ratio stack to reach
Seatpost diameter   34,9 34,9 34,9 34,9 34,9
Stem length   50 50 50 50 50 center-center
Stem angle (°)   5 5 5 5 5
Handlebar diameter   35 35 35 35 35
Assembled spacers   9,5 + 6*5 + 5
Handlebar width   780 780 780 780 780
Cranklength   165 165 165 165 165
    R1 R2 R3 R4 R5

Wszystkie wartości zmiennej geometrii odnoszą się do standardowej pozycji jazdy (z rowerzystą na pokładzie i lekko ściśniętym widelcem amortyzowanym).

* measured 100 mm ahead of bottom bracket
